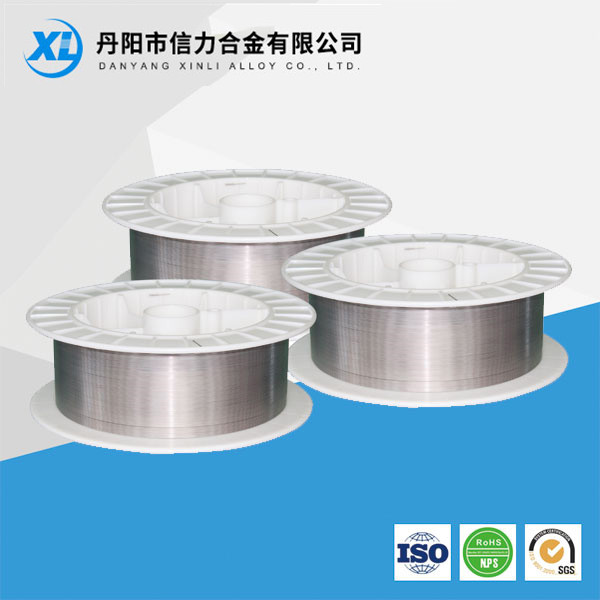

ERNiCu-7



CHEMICAL COMPOSITION(%)



C Si Mn S P Ni
≤0.15 ≤1.25 ≤4.0 ≤0.015 ≤0.02 62-69
Al Ti Fe Cu others 　
≤1.25 1.5-3.0 ≤2.5 Rest <0.5 　



WELDING PARAMETERS



Process Diameter Voltage Amperage Gas
TIG .035”(0.9mm) 12-15 60-90 100%Argon
.045”(1.2mm) 13-16 80-110 100%Argon
1/16”(1.6mm) 14-18 90-130 100%Argon
3/32”(2.4mm) 15-20 120-175 100%Argon
1/8”(3.2mm) 15-20 150-220 100%Argon
MIG .035”(0.9mm) 26-29 150-190 75%Argon+25%Helium
.045”(1.2mm) 28-32 180-220 75%Argon+25%Helium
1/16”(1.6mm) 29-33 200-250 75%Argon+25%Helium
SAW 3/32”(2.4mm) 28-30 275-350 SuitableFluxmaybeused
1/8”(3.2mm) 29-32 350-450 SuitableFluxmaybeused
5/32”(4.0mm) 30-33 400-550 SuitableFluxmaybeused



MECHANICAL PROPERTIES



Tensile Strength  76,5000 PSI  530 MPA
Yield Strength  52,500 PSI  360 MPA
Elongation  34%  　
